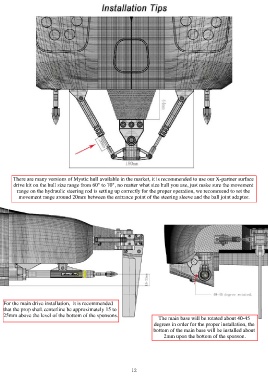

There are many versions of Mystic hull available in the market, it is recommended to use our X-partner surface
drive kit on the hull size range from 60" to 70", no matter what size hull you use, just make sure the movement
range on the hydraulic steering rod is setting up correctly for the proper operation, we recommend to set the
movement range around 20mm between the entrance point of the steering sleeve and the ball joint adaptor.

For the main drive installation, it is recommended
that the prop shaft centerline be approximately 15 to
25mm above the level of the bottom of the sponsons.
The main base will be rotated about 40-45
degrees in order for the proper installation, the
bottom of the main base will be installed about
2mm upon the bottom of the sponson.
