Page 4 - Arrow Shark X-60 Owner Manual

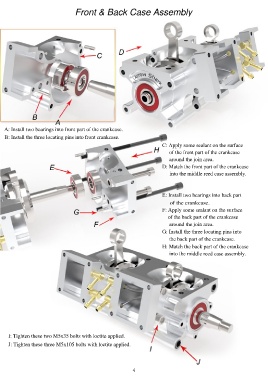

Front & Back Case Assembly

A: Install two bearings into front part of the crankcase.
B: Install the three locating pins into front crankcase.

C: Apply some sealant on the surface
of the front part of the crankcase
around the join area.
D: Match the front part of the crankcase
into the middle reed case assembly.

E: Install two bearings into back part
of the crankcase.
F: Apply some sealant on the surface
of the back part of the crankcase
around the join area.
G: Install the three locating pins into
the back part of the crankcase.
H: Match the back part of the crankcase
into the middle reed case assembly.

I: Tighten these two M5x35 bolts with loctite applied.

J: Tighten these three M5x105 bolts with loctite applied.

4
