Page 2 - Arrow Shark X-60 Owner Manual
P. 2

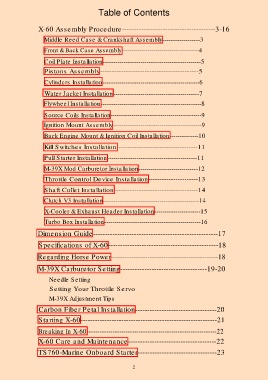

Table of Contents
X-60 Assembly Procedure---------------------------------------3-16
Middle Reed Case & Crankshaft Assembly------------------3
Front & Back Case Assembly---------------------------------------4
Coil Plate Installation-----------------------------------------------5
Pistons Assembly------------------------------------------5
Cylinders Installation----------------------------------------------6
Water Jacket Installation-----------------------------------------7
Flywheel Installation------------------------------------------------8
Source Coils Installation--------------------------------------------9
Ignition Mount Assembly------------------------------------------9
Back Engine Mount & Ignition Coil Installation--------------10
Kill Switches Installation------------------------------------11
Pull Starter Installation-------------------------------------------11
M-39X Mod Carburetor Installation-----------------------------12
Throttle Control Device Installation----------------------13
Shaft Collet Installation-------------------------------------14
Clutch V3 Installation----------------------------------------------14
X-Cooler & Exhaust Header Installation----------------------15
Turbo Box Installation-----------------------------------------------16
Dimension Guide----------------------------------------------------17
Specifications of X-60----------------------------------------------18
Regarding Horse Power-----------------------------------------------18
M-39X Carburetor Setting------------------------------------19-20
Needle Setting
Setting Your Throttle Servo
M-39X Adjustment Tips
Carbon Fiber Petal Installation----------------------------------20
Starting X-60---------------------------------------------------------21
Breaking In X-60------------------------------------------------------------22
X-60 Care and Maintenance-------------------------------------22
TS760-Marine Onboard Starter---------------------------------23
2
