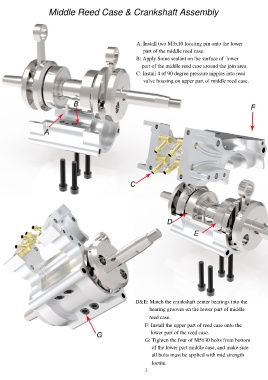

Middle Reed Case & Crankshaft Assembly

A: Install two M3x10 locating pin onto the lower
part of the middle reed case.
B: Apply Some sealant on the surface of lower
part of the middle reed case around the join area.
C: Install 4 of 90 degree pressure nipples into reed
valve housing on upper part of middle reed case.

D&E: Match the crankshaft center bearings into the
bearing grooves on the lower part of middle
reed case.

F: Install the upper part of reed case onto the
lower part of the reed case.
G: Tighten the four of M5x30 bolts from bottom
of the lower part middle case, and make sure
all bolts must be applied with mid strength
loctite.
