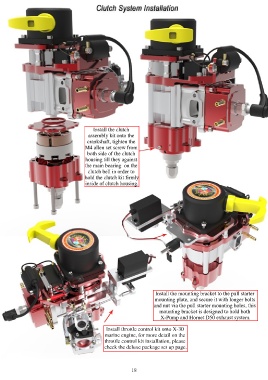

Install the clutch
assembly kit onto the
crankshaft, tighten the
M4 allen set screw from
both side of the clutch
housing till they against
the main bearing on the
clutch bell in order to
hold the clutch kit firmly
inside of clutch housing.

Install the mounting bracket to the pull starter
mounting plate, and secure it with longer bolts
and nut via the pull starter mounting holes, this
mounting bracket is designed to hold both
X-Pump and Hornet D50 exhaust system.

Install throttle control kit onto X-30
marine engine, for more detail on the
throttle control kit installation, please
check the deluxe package set up page.

18
