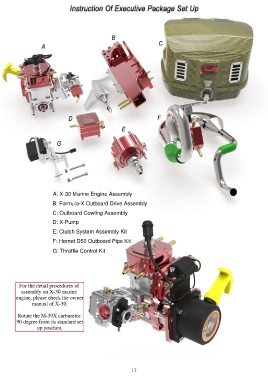

Page 17 - Arrow Shark Formula-X Owner Manual

A: X-30 Marine Engine Assembly

B: Formula-X Outboard Drive Assembly
C: Outboard Cowling Assembly

D: X-Pump

E: Clutch System Assembly Kit
F: Hornet D50 Outboard Pipe Kit

G: Throttle Control Kit

For the detail procedures of
assembly on X-30 marine
engine, please check the owner
manual of X-30.

Rotate the M-39X carburetor
90 degree from its standard set
up position.

17
