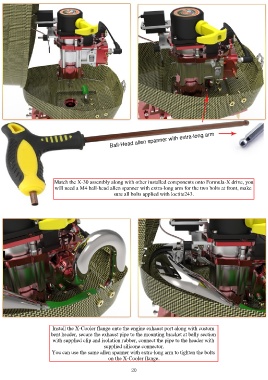

Ball-Head allen spanner with extra-long arm

Match the X-30 assembly along with other installed components onto Formula-X drive, you
will need a M4 ball-head allen spanner with extra-long arm for the two bolts at front, make
sure all bolts applied with loctite243.

Install the X-Cooler flange onto the engine exhaust port along with custom
bent header, secure the exhaust pipe to the mounting bracket at belly section
with supplied clip and isolation rubber, connect the pipe to the header with
supplied silicone connector.
You can use the same allen spanner with extra-long arm to tighten the bolts
on the X-Cooler flange.
