Page 22 - Arrow Shark Formula-X Owner Manual
P. 22

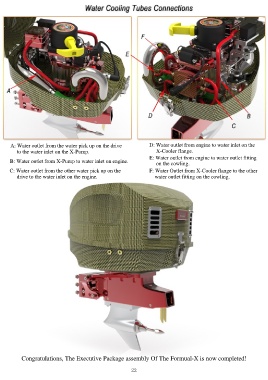

A: Water outlet from the water pick up on the drive D: Water outlet from engine to water inlet on the
to the water inlet on the X-Pump. X-Cooler flange.
E: Water outlet from engine to water outlet fitting
B: Water outlet from X-Pump to water inlet on engine.
on the cowling.
C: Water outlet from the other water pick up on the F: Water Outlet from X-Cooler flange to the other
drive to the water inlet on the engine. water outlet fitting on the cowling.
Congratulations, The Executive Package assembly Of The Formual-X is now completed!
