Page 23 - Arrow Shark Formula-X Owner Manual

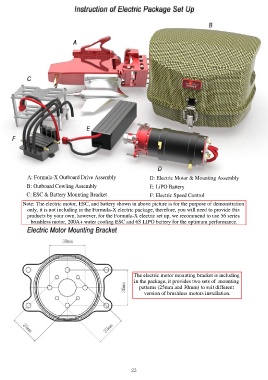

A: Formula-X Outboard Drive Assembly D: Electric Motor & Mounting Assembly

B: Outboard Cowling Assembly E: LiPO Battery
C: ESC & Battery Mounting Bracket F: Electric Speed Control

Note: The electric motor, ESC, and battery shown in above picture is for the purpose of demonstration
only, it is not including in the Formula-X electric package, therefore, you will need to provide this
products by your own, however, for the Formula-X electric set up, we recommend to use 56 series
brushless motor, 200A+ water cooling ESC and 6S LIPO battery for the optimum performance.

The electric motor mounting bracket is including
in the package, it provides two sets of mounting
patterns (25mm and 30mm) to suit different
version of brushless motors installation.

23
