Page 9 - Arrow Shark E-Starer V4 Owner Manual
P. 9

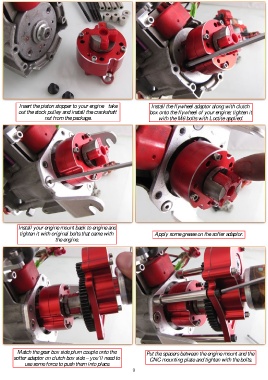

Insert the piston stopper to your engine - take Install the flywheel adaptor along with clutch
out the stock pulley and install the crankshaft box onto the flywheel of your engine; tighten it
nut from the package. with the M6 bolts with Loctite applied.
Install your engine mount back to engine and
tighten it with original bolts that came with Apply some grease on the softer adaptor.
the engine.
Match the gear box side plum couple onto the Put the spacers between the engine mount and the
softer adaptor on clutch box side – you’ll need to CNC mounting plate and tighten with the bolts.
use some force to push them into place.
9
