P. 12

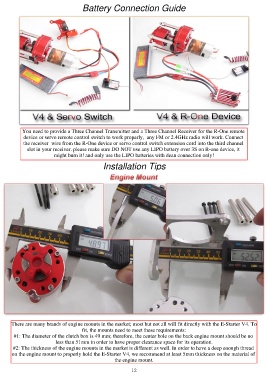

Battery Connection Guide
You need to provide a Three Channel Transmitter and a Three Channel Receiver for the R-One remote
device or servo remote control switch to work properly, any FM or 2.4GHz radio will work. Connect
the receiver wire from the R-One device or servo control switch extension cord into the third channel
slot in your receiver. please make sure DO NOT use any LIPO battery over 3S on R-one device, it
might burn it! and only use the LIPO batteries with dean connection only!
Installation Tips
There are many brands of engine mounts in the market; most but not all will fit directly with the E-Starter V4. To
fit, the mounts need to meet these requirements:
#1: The diameter of the clutch box is 49 mm; therefore, the center hole on the back engine mount should be no
less than 51mm in order to have proper clearance space for its operation.
#2: The thickness of the engine mounts in the market is different as well. In order to have a deep enough thread
on the engine mount to properly hold the E-Starter V4, we recommend at least 5mm thickness on the material of
the engine mount.
