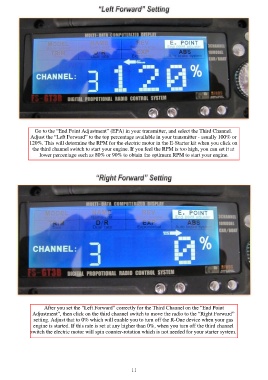

Go to the “End Point Adjustment” (EPA) in your transmitter, and select the Third Channel.
Adjust the “Left Forward” to the top percentage available in your transmitter - usually 100% or
120%. This will determine the RPM for the electric motor in the E-Starter kit when you click on
the third channel switch to start your engine. If you feel the RPM is too high, you can set it at
lower percentage such as 80% or 90% to obtain the optimum RPM to start your engine.
After you set the “Left Forward” correctly for the Third Channel on the “End Point
Adjustment”, then click on the third channel switch to move the radio to the “Right Forward”
setting. Adjust that to 0% which will enable you to turn off the R-One device when your gas
engine is started. If this rate is set at any higher than 0%, when you turn off the third channel
switch the electric motor will spin counter-rotation which is not needed for your starter system.
