P. 10

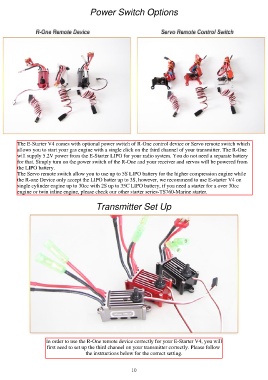

Power Switch Options
The E-Starter V4 comes with optional power switch of R-One control device or Servo remote switch which
allows you to start your gas engine with a single click on the third channel of your transmitter. The R-One
will supply 5.2V power from the E-Starter LIPO for your radio system. You do not need a separate battery
for that. Simply turn on the power switch of the R-One and your receiver and servos will be powered from
the LIPO battery.
The Servo remote switch allow you to use up to 5S LIPO battery for the higher compression engine while
the R-one Device only accept the LIPO batter up to 3S, however, we recommend to use E-starter V4 on
single cylinder engine up to 30cc with 2S up to 35C LIPO battery, if you need a starter for a over 30cc
engine or twin inline engine, please check our other starter series-TS760-Marine starter.
Transmitter Set Up
In order to use the R-One remote device correctly for your E-Starter V4, you will
first need to set up the third channel on your transmitter correctly. Please follow
the instructions below for the correct setting.
10
