Page 4 - Arrow Shark E-Starer V4 Owner Manual

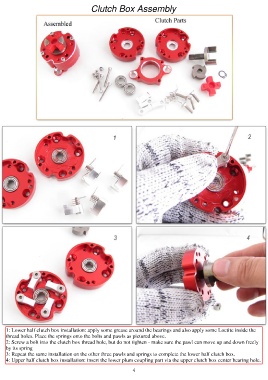

Clutch Box Assembly

1: Lower half clutch box installation: apply some grease around the bearings and also apply some Loctite inside the
thread holes. Place the springs onto the bolts and pawls as pictured above.
2: Screw a bolt into the clutch box thread hole, but do not tighten - make sure the pawl can move up and down freely
by its spring
3: Repeat the same installation on the other three pawls and springs to complete the lower half clutch box.
4: Upper half clutch box installation: insert the lower plum coupling part via the upper clutch box center bearing hole.

4
