P. 6

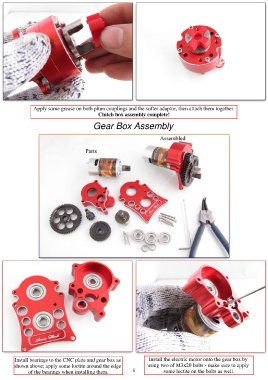

Apply some grease on both plum couplings and the softer adaptor, then attach them together.
Clutch box assembly complete!
Gear Box Assembly
Install bearings to the CNC plate and gear box as Install the electric motor onto the gear box by
shown above; apply some loctite around the edge using two of M3x20 bolts - make sure to apply
of the bearings when installing them. 6 some loctite on the bolts as well.
