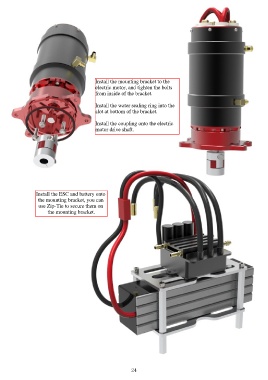

Install the mounting bracket to the
electric motor, and tighten the bolts
from inside of the bracket.

Install the water sealing ring into the
slot at bottom of the bracket.

Install the coupling onto the electric
motor drive shaft.

Install the ESC and battery onto
the mounting bracket, you can
use Zip-Tie to secure them on
the mounting bracket.
