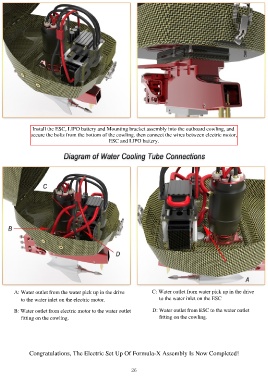

Install the ESC, LIPO battery and Mounting bracket assembly into the outboard cowling, and
secure the bolts from the bottom of the cowling. then connect the wires between electric motor,
ESC and LIPO battery.
A: Water outlet from the water pick up in the drive C: Water outlet from water pick up in the drive
to the water inlet on the electric motor. to the water inlet on the ESC
B: Water outlet from electric motor to the water outlet D: Water outlet from ESC to the water outlet
fitting on the cowling. fitting on the cowling.
Congratulations, The Electric Set Up Of Formula-X Assembly Is Now Completed!
