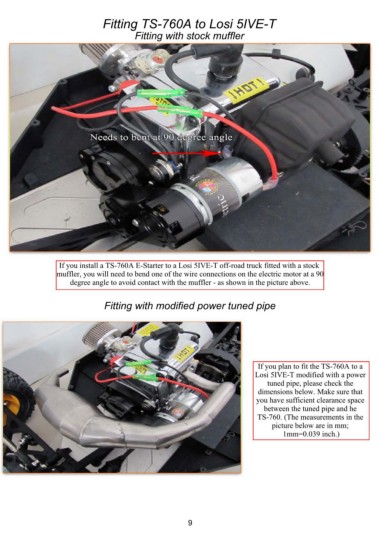

Fitting TS-760A to Losi 5IVE-T

Fitting with stock muffler

If you install a TS-760A E-Starter to a Losi 5IVE-T off-road truck fitted with a stock
muffler, you will need to bend one of the wire connections on the electric motor at a 90
degree angle to avoid contact with the muffler - as shown in the picture above.

Fitting with modified power tuned pipe

If you plan to fit the TS-760A to a
Losi 5IVE-T modified with a power
tuned pipe, please check the
dimensions below. Make sure that
you have sufficient clearance space
between the tuned pipe and he
TS-760. (The measurements in the
picture below are in mm;
1mm=0.039 inch.)

9
