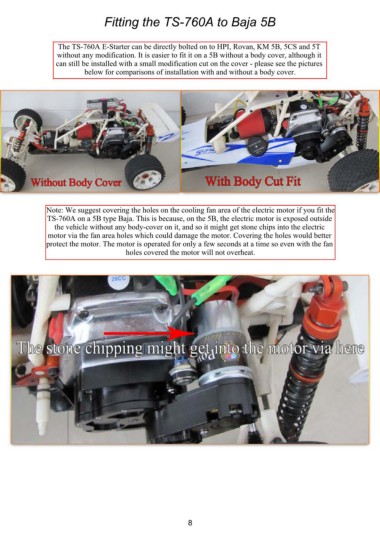

Fitting the TS-760A to Baja 5B

The TS-760A E-Starter can be directly bolted on to HPI, Rovan, KM 5B, 5CS and 5T
without any modification. It is easier to fit it on a 5B without a body cover, although it
can still be installed with a small modification cut on the cover - please see the pictures
below for comparisons of installation with and without a body cover.

Note: We suggest covering the holes on the cooling fan area of the electric motor if you fit the
TS-760A on a 5B type Baja. This is because, on the 5B, the electric motor is exposed outside
the vehicle without any body-cover on it, and so it might get stone chips into the electric
motor via the fan area holes which could damage the motor. Covering the holes would better
protect the motor. The motor is operated for only a few seconds at a time so even with the fan
holes covered the motor will not overheat.
