Page 4 - Arrow Shark TS760A Owner Manual

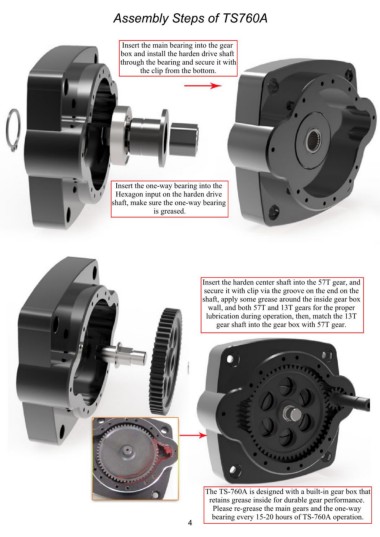

Assembly Steps of TS760A

Insert the main bearing into the gear
box and install the harden drive shaft
through the bearing and secure it with
the clip from the bottom.

Insert the one-way bearing into the
Hexagon input on the harden drive
shaft, make sure the one-way bearing
is greased.

Insert the harden center shaft into the 57T gear, and
secure it with clip via the groove on the end on the
shaft, apply some grease around the inside gear box
wall, and both 57T and 13T gears for the proper
lubrication during operation, then, match the 13T
gear shaft into the gear box with 57T gear.

The TS-760A is designed with a built-in gear box that
retains grease inside for durable gear performance.
Please re-grease the main gears and the one-way
bearing every 15-20 hours of TS-760A operation.
