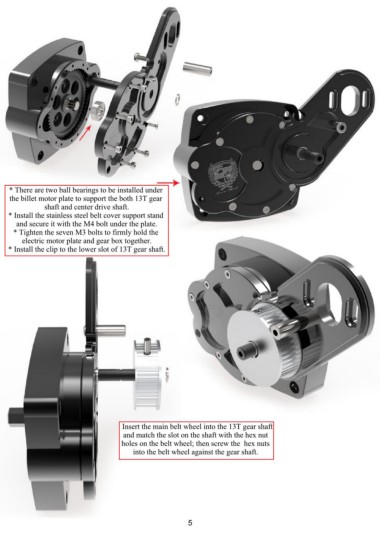

* There are two ball bearings to be installed under
the billet motor plate to support the both 13T gear
shaft and center drive shaft.
* Install the stainless steel belt cover support stand
and secure it with the M4 bolt under the plate.
* Tighten the seven M3 bolts to firmly hold the
electric motor plate and gear box together.
* Install the clip to the lower slot of 13T gear shaft.

Insert the main belt wheel into the 13T gear shaft
and match the slot on the shaft with the hex nut
holes on the belt wheel; then screw the hex nuts
into the belt wheel against the gear shaft.

5
