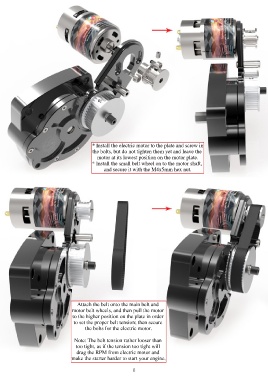

* Install the electric motor to the plate and screw in
the bolts, but do not tighten them yet and leave the
motor at its lowest position on the motor plate.
* Install the small belt wheel on to the motor shaft,
and secure it with the M4x5mm hex nut.

Attach the belt onto the main belt and
motor belt wheels, and then pull the motor
to the higher position on the plate in order
to set the proper belt tension; then secure
the bolts for the electric motor.

Note: The belt tension rather looser than
too tight, as if the tension too tight will
drag the RPM from electric motor and
make the starter harder to start your engine.
