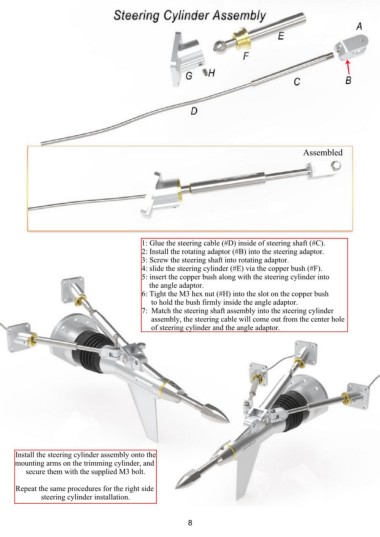

Page 8 - Arrow Shark Blade-X Owner Manual

Assembled

1: Glue the steering cable (#D) inside of steering shaft (#C).
2: Install the rotating adaptor (#B) into the steering adaptor.
3: Screw the steering shaft into rotating adaptor.
4: slide the steering cylinder (#E) via the copper bush (#F).
5: insert the copper bush along with the steering cylinder into
the angle adaptor.
6: Tight the M3 hex nut (#H) into the slot on the copper bush
to hold the bush firmly inside the angle adaptor.
7: Match the steering shaft assembly into the steering cylinder
assembly, the steering cable will come out from the center hole
of steering cylinder and the angle adaptor.

Install the steering cylinder assembly onto the
mounting arms on the trimming cylinder, and
secure them with the supplied M3 bolt.

Repeat the same procedures for the right side
steering cylinder installation.

8
