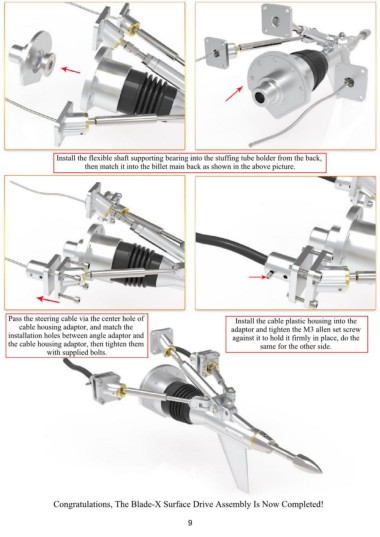

Install the flexible shaft supporting bearing into the stuffing tube holder from the back,
then match it into the billet main back as shown in the above picture.

Pass the steering cable via the center hole of Install the cable plastic housing into the
cable housing adaptor, and match the adaptor and tighten the M3 allen set screw
installation holes between angle adaptor and against it to hold it firmly in place, do the
the cable housing adaptor, then tighten them same for the other side.
with supplied bolts.

Congratulations, The Blade-X Surface Drive Assembly Is Now Completed!
