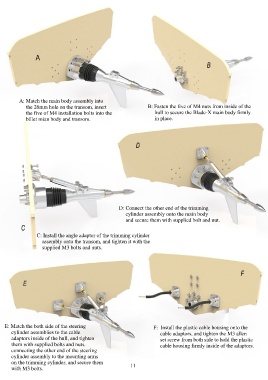

A: Match the main body assembly into
the 26mm hole on the transom, insert B: Fasten the five of M4 nuts from inside of the
the five of M4 installation bolts into the hull to secure the Blade-X main body firmly
billet mian body and transom. in place.

D: Connect the other end of the trimming
cylinder assembly onto the main body
and secure them with supplied bolt and nut.

C: Install the angle adaptor of the trimming cylinder
assembly onto the transom, and tighten it with the
supplied M3 bolts and nuts.

E: Match the both side of the steering F: Install the plastic cable housing onto the
cylinder assemblies to the cable cable adaptors, and tighten the M3 allen
adaptors inside of the hull, and tighten set screw from both side to hold the plastic
them with supplied bolts and nuts. cable housing firmly inside of the adaptors.
connecting the other end of the steering
cylinder assembly to the mounting arms
on the trimming cylinder, and secure them 11
with M3 bolts.
