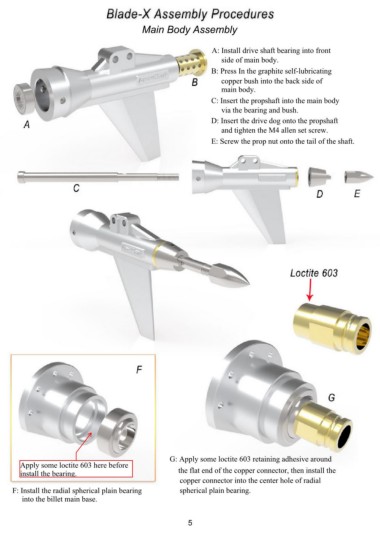

Main Body Assembly
A: Install drive shaft bearing into front
side of main body.
B: Press In the graphite self-lubricating
copper bush into the back side of
main body.
C: Insert the propshaft into the main body
via the bearing and bush.
D: Insert the drive dog onto the propshaft
and tighten the M4 allen set screw.
E: Screw the prop nut onto the tail of the shaft.
G: Apply some loctite 603 retaining adhesive around
Apply some loctite 603 here before
install the bearing. the flat end of the copper connector, then install the
copper connector into the center hole of radial
F: Install the radial spherical plain bearing spherical plain bearing.
into the billet main base.
5
