Page 3 - Arrow Shark Blade-X Owner Manual
P. 3

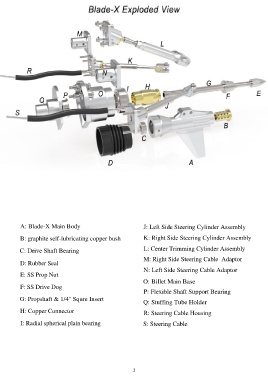

A: Blade-X Main Body                                   J: Left Side Steering Cylinder Assembly

          B: graphite self-lubricating copper bush               K: Right Side Steering Cylinder Assembly


          C: Drive Shaft Bearing                                 L: Center Trimming Cylinder Assembly
                                                                 M: Right Side Steering Cable  Adaptor
          D: Rubber Seal
                                                                 N: Left Side Steering Cable Adaptor
          E: SS Prop Nut
                                                                 O: Billet Main Base
          F: SS Drive Dog
                                                                 P: Flexible Shaft Support Bearing
          G: Propshaft & 1/4" Squre Insert
                                                                 Q: Stuffing Tube Holder

          H: Copper Connector                                    R: Steering Cable Housing

          I: Radial spherical plain bearing                      S: Steering Cable











                                                            3
   1   2   3   4   5   6   7   8
