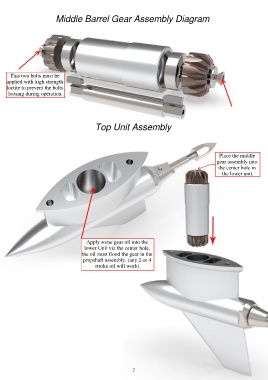

Middle Barrel Gear Assembly Diagram
This two bolts must be
applied with high strength
loctite to prevent the bolts
loosing during operation.
Top Unit Assembly
Place the middle
gear assembly into
the center hole in
the lower unit.
Apply some gear oil into the
lower Unit via the center hole,
the oil must flood the gear in the
propshaft assembly. (any 2 or 4
stroke oil will work).
