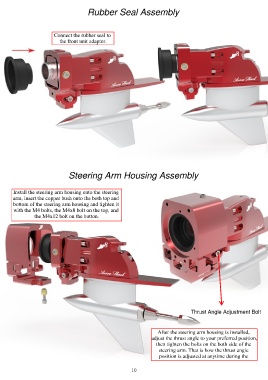

Rubber Seal Assembly

Connect the rubber seal to
the front unit adaptor.

Steering Arm Housing Assembly

Install the steering arm housing onto the steering
arm, insert the copper bush onto the both top and
bottom of the steering arm housing and tighten it
with the M4 bolts, the M4x8 bolt on the top, and
the M4x12 bolt on the button.

Thrust Angle Adjustment Bolt

After the steering arm housing is installed,
adjust the thrust angle to your preferred position,
then tighten the bolts on the both side of the
steering arm. That is how the thrust angle
position is adjusted at anytime during the
operation.
