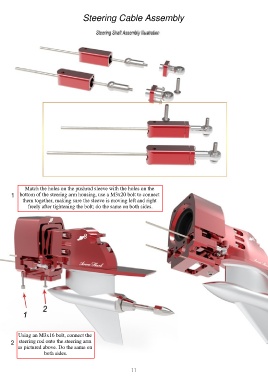

Steering Cable Assembly

Match the holes on the pushrod sleeve with the holes on the
1 bottom of the steering arm housing, use a M3x20 bolt to connect
them together, making sure the sleeve is moving left and right
freely after tightening the bolt; do the same on both sides.

Using an M3x16 bolt, connect the
2 steering rod onto the steering arm
as pictured above. Do the same on
both sides.
