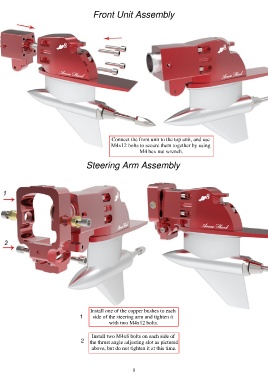

Front Unit Assembly

Connect the front unit to the top unit, and use
M4x12 bolts to secure them together by using
M4 hex nut wrench.

Steering Arm Assembly

Install one of the copper bushes to each
1 side of the steering arm and tighten it
with two M4x12 bolts.

Install two M4x8 bolts on each side of
2 the thrust angle adjusting slot as pictured
above, but do not tighten it at this time.
