Page 2 - Arrow Shark M8-Collector Owner Manual
P. 2

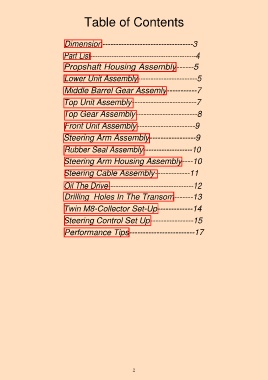

Table of Contents
Dimension----------------------------------3
Part List---------------------------------------------4
Propshaft Housing Assembly------5
Lower Unit Assembly-----------------------5
Middle Barrel Gear Assemly-----------7
Top Unit Assembly------------------------7
Top Gear Assembly-----------------------8
Front Unit Assembly----------------------9
Steering Arm Assembly-----------------9
Rubber Seal Assembly-------------------10
Steering Arm Housing Assembly----10
Steering Cable Assembly-------------11
Oil The Drive----------------------------------12
Drilling Holes In The Transom-------13
Twin M8-Collector Set-Up-------------14
Steering Control Set Up----------------15
Performance Tips------------------------17
2
