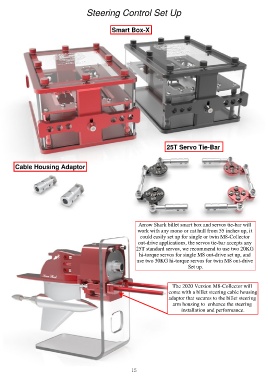

Steering Control Set Up

Smart Box-X

25T Servo Tie-Bar

Cable Housing Adaptor

Arrow Shark billet smart box and servos tie-bar will
work with any mono or cat hull from 55 inches up, it
could easily set up for single or twin M8-Collector
out-drive applications, the servos tie-bar accepts any
25T standard servos, we recommend to use two 20KG
hi-torque servos for single M8 out-drive set up, and
use two 30KG hi-torque servos for twin M8 out-drive
Set up.

The 2020 Version M8-Collector will
come with a billet steering cable housing
adaptor that secures to the billet steering
arm housing to enhance the steering
installation and performance.
