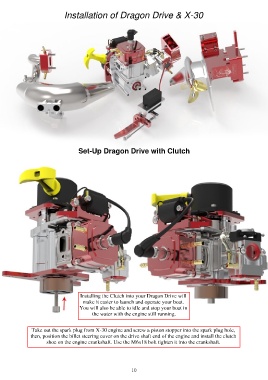

Installation of Dragon Drive & X-30

Set-Up Dragon Drive with Clutch

Installing the Clutch into your Dragon Drive will
make it easier to launch and operate your boat.
You will also be able to idle and stop your boat in
the water with the engine still running.

Take out the spark plug from X-30 engine and screw a piston stopper into the spark plug hole,
then, position the billet steering cover on the drive shaft end of the engine and install the clutch
shoe on the engine crankshaft. Use the M6x18 bolt tighten it into the crankshaft.
