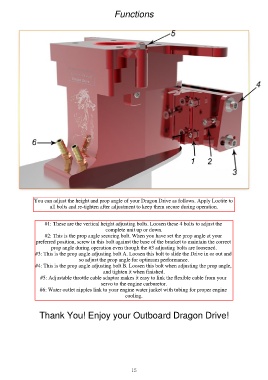

Functions

You can adjust the height and prop angle of your Dragon Drive as follows. Apply Loctite to
all bolts and re-tighten after adjustment to keep them secure during operation.

#1: These are the vertical height adjusting bolts. Loosen these 4 bolts to adjust the
complete unit up or down.
#2: This is the prop angle securing bolt. When you have set the prop angle at your
preferred position, screw in this bolt against the base of the bracket to maintain the correct
prop angle during operation even though the #3 adjusting bolts are loosened.
#3: This is the prop angle adjusting bolt A. Loosen this bolt to slide the Drive in or out and
so adjust the prop angle for optimum performance.
#4: This is the prop angle adjusting bolt B. Loosen this bolt when adjusting the prop angle,
and tighten it when finished.
#5: Adjustable throttle cable adaptor makes it easy to link the flexible cable from your
servo to the engine carburetor.
#6: Water outlet nipples link to your engine water jacket with tubing for proper engine
cooling.

Thank You! Enjoy your Outboard Dragon Drive!
