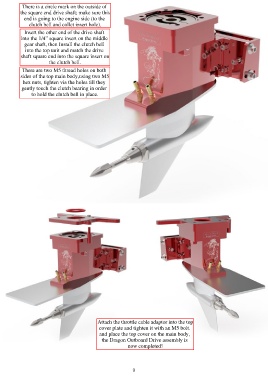

Page 9 - Arrow Shark Outboard Dragon Drive Owner Manual

There is a circle mark on the outside of
the square end drive shaft; make sure this
end is going to the engine side (to the
clutch bell and collet insert hole).
Insert the other end of the drive shaft
into the 1/4” square insert on the middle
gear shaft, then Install the clutch bell
into the top unit and match the drive
shaft square end into the square insert on
the clutch bell.
There are two M5 thread holes on both
sides of the top main body,using two M5
hex nuts, tighten via the holes till they
gently touch the clutch bearing in order
to hold the clutch bell in place.

Attach the throttle cable adaptor into the top
cover plate and tighten it with an M5 bolt.
and place the top cover on the main body,
the Dragon Outboard Drive assembly is
now completed!
