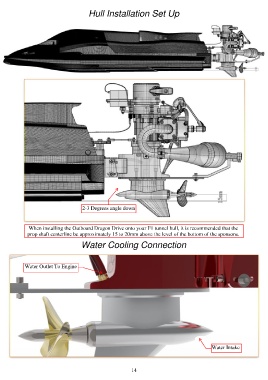

Hull Installation Set Up

2-3 Degrees angle down

When installing the Outboard Dragon Drive onto your F1 tunnel hull, it is recommended that the
prop shaft centerline be approximately 15 to 20mm above the level of the bottom of the sponsons.
Water Cooling Connection

Water Outlet To Engine

Water Intake
