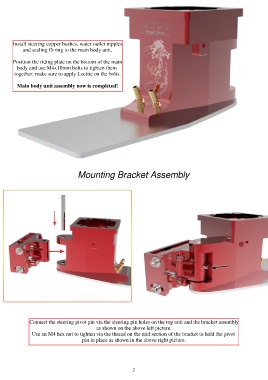

P. 7
Install steering copper bushes, water outlet nipples
and sealing O-ring to the main body unit.
Position the riding plate on the bottom of the main
body and use M4x10mm bolts to tighten them
together; make sure to apply Loctite on the bolts.
Main body unit assembly now is completed!
Mounting Bracket Assembly
Connect the steering pivot pin via the steering pin holes on the top unit and the bracket assembly
as shown on the above left picture.
Use an M4 hex nut to tighten via the thread on the mid section of the bracket to hold the pivot
pin in place as shown in the above right picture.
7
