Page 7 - Arrow Shark Tab-X

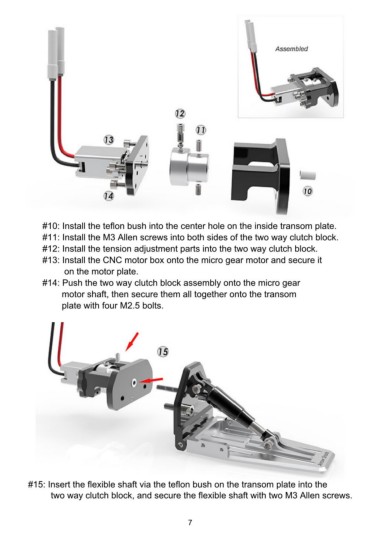

#10: Install the teflon bush into the center hole on the inside transom plate.

#11: Install the M3 Allen screws into both sides of the two way clutch block.
#12: Install the tension adjustment parts into the two way clutch block.
#13: Install the CNC motor box onto the micro gear motor and secure it
on the motor plate.
#14: Push the two way clutch block assembly onto the micro gear

motor shaft, then secure them all together onto the transom
plate with four M2.5 bolts.

#15: Insert the flexible shaft via the teflon bush on the transom plate into the
two way clutch block, and secure the flexible shaft with two M3 Allen screws.

7
