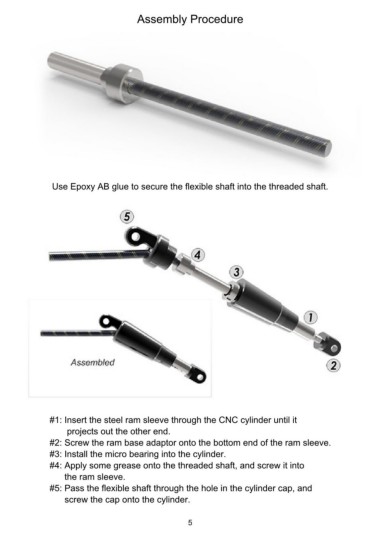

Assembly Procedure
































                 Use Epoxy AB glue to secure the flexible shaft into the threaded shaft.











































                #1: Insert the steel ram sleeve through the CNC cylinder until it

                       projects out the other end.
                #2: Screw the ram base adaptor onto the bottom end of the ram sleeve.
                #3: Install the micro bearing into the cylinder.
                #4: Apply some grease onto the threaded shaft, and screw it into
                      the ram sleeve.

                #5: Pass the flexible shaft through the hole in the cylinder cap, and
                      screw the cap onto the cylinder.



                                                            5
