Page 12 - Arrow Shark Tab-X
P. 12

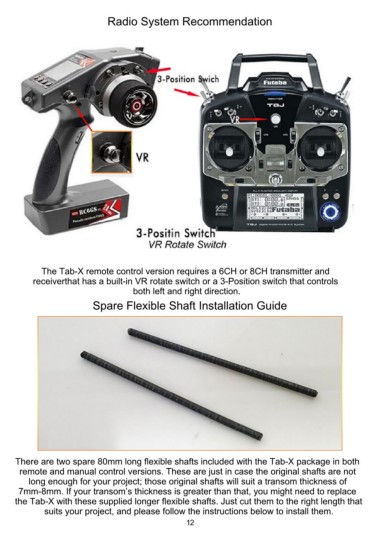

Radio System Recommendation
The Tab-X remote control version requires a 6CH or 8CH transmitter and
receiverthat has a built-in VR rotate switch or a 3-Position switch that controls
both left and right direction.
Spare Flexible Shaft Installation Guide
There are two spare 80mm long flexible shafts included with the Tab-X package in both
remote and manual control versions. These are just in case the original shafts are not
long enough for your project; those original shafts will suit a transom thickness of
7mm-8mm. If your transom’s thickness is greater than that, you might need to replace
the Tab-X with these supplied longer flexible shafts. Just cut them to the right length that
suits your project, and please follow the instructions below to install them.
12
