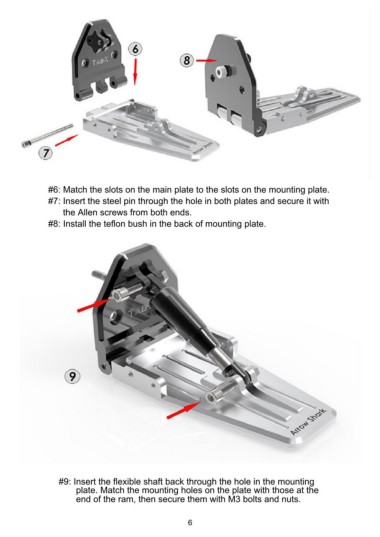

#6: Match the slots on the main plate to the slots on the mounting plate.
#7: Insert the steel pin through the hole in both plates and secure it with
the Allen screws from both ends.
#8: Install the teflon bush in the back of mounting plate.
#9: Insert the flexible shaft back through the hole in the mounting
plate. Match the mounting holes on the plate with those at the
end of the ram, then secure them with M3 bolts and nuts.
