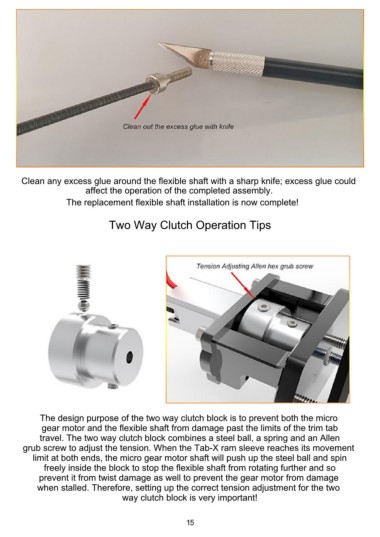

Clean any excess glue around the flexible shaft with a sharp knife; excess glue could
affect the operation of the completed assembly.

The replacement flexible shaft installation is now complete!

Two Way Clutch Operation Tips

The design purpose of the two way clutch block is to prevent both the micro
gear motor and the flexible shaft from damage past the limits of the trim tab
travel. The two way clutch block combines a steel ball, a spring and an Allen
grub screw to adjust the tension. When the Tab-X ram sleeve reaches its movement
limit at both ends, the micro gear motor shaft will push up the steel ball and spin
freely inside the block to stop the flexible shaft from rotating further and so
prevent it from twist damage as well to prevent the gear motor from damage
when stalled. Therefore, setting up the correct tension adjustment for the two
way clutch block is very important!
