Page 17 - Arrow Shark Tab-X

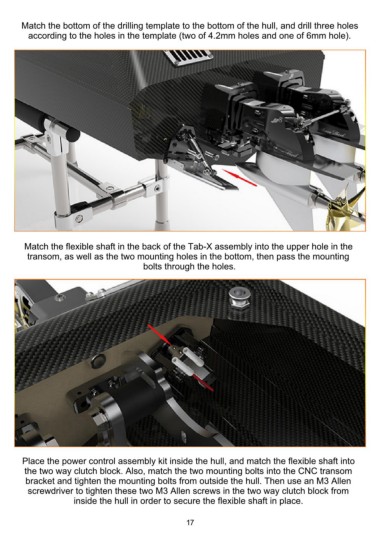

Match the bottom of the drilling template to the bottom of the hull, and drill three holes
according to the holes in the template (two of 4.2mm holes and one of 6mm hole).

Match the flexible shaft in the back of the Tab-X assembly into the upper hole in the
transom, as well as the two mounting holes in the bottom, then pass the mounting
bolts through the holes.

Place the power control assembly kit inside the hull, and match the flexible shaft into
the two way clutch block. Also, match the two mounting bolts into the CNC transom
bracket and tighten the mounting bolts from outside the hull. Then use an M3 Allen
screwdriver to tighten these two M3 Allen screws in the two way clutch block from
inside the hull in order to secure the flexible shaft in place.
