Page 6 - Arrow Shark TS760-Marine Owner Manual
P. 6

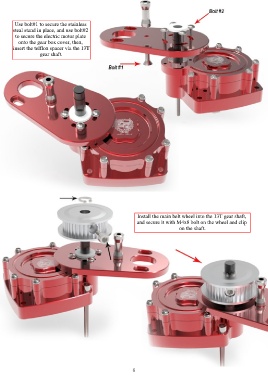

Use bolt#1 to secure the stainless
steal stand in place, and use bolt#2
to secure the electric motor plate
onto the gear box cover, then,
insert the telflon spacer via the 13T
gear shaft.
Install the main belt wheel into the 13T gear shaft,
and secure it with M4x8 bolt on the wheel and clip
on the shaft.
6
