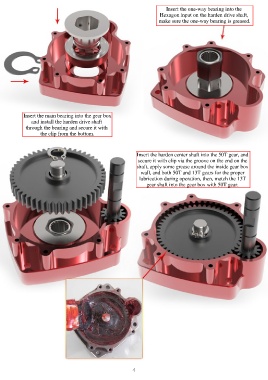

Insert the one-way bearing into the
Hexagon input on the harden drive shaft,
make sure the one-way bearing is greased.

Insert the main bearing into the gear box
and install the harden drive shaft
through the bearing and secure it with
the clip from the bottom.

Insert the harden center shaft into the 50T gear, and
secure it with clip via the groove on the end on the
shaft, apply some grease around the inside gear box
wall, and both 50T and 13T gears for the proper
lubrication during operation, then, match the 13T
gear shaft into the gear box with 50T gear.

4
