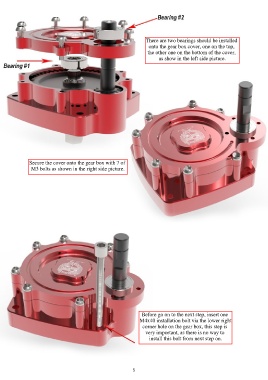

There are two bearings should be installed
onto the gear box cover, one on the top,
the other one on the bottom of the cover,
as show in the left side picture.

Secure the cover onto the gear box with 7 of
M3 bolts as shown in the right side picture.

Before go on to the next step, insert one
M4x40 installation bolt via the lower right
corner hole on the gear box, this step is
very important, as there is no way to
install this bolt from next step on.

5
