P. 15

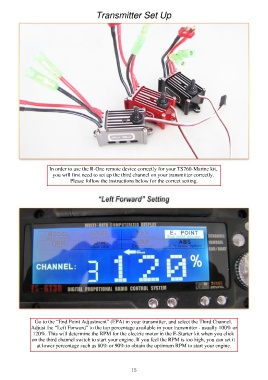

Transmitter Set Up
In order to use the R-One remote device correctly for your TS760-Marine kit,
you will first need to set up the third channel on your transmitter correctly.
Please follow the instructions below for the correct setting.
Go to the “End Point Adjustment” (EPA) in your transmitter, and select the Third Channel.
Adjust the “Left Forward” to the top percentage available in your transmitter - usually 100% or
120%. This will determine the RPM for the electric motor in the E-Starter kit when you click
on the third channel switch to start your engine. If you feel the RPM is too high, you can set it
at lower percentage such as 80% or 90% to obtain the optimum RPM to start your engine.
