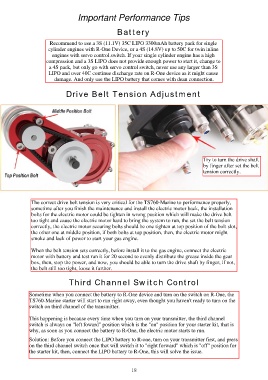

Important Performance Tips

Battery

Recommend to use a 3S (11.1V) 35C LIPO 3300mAh battery pack for single
cylinder engines with R-One Device, or a 4S (14.8V) up to 50C for twin inline
engines with servo control switch. If your single cylinder engine has a high
compression and a 3S LIPO does not provide enough power to start it, change to
a 4S pack, but only go with servo control switch, never use any larger than 3S
LIPO and over 40C continue discharge rate on R-One device as it might cause
damage. And only use the LIPO battery that comes with dean connection.

Drive Belt Tension Adjustment

Try to turn the drive shaft
by finger after set the belt
tension correctly.

The correct drive belt tension is very critical for the TS760-Marine to performance properly,
sometime after you finish the maintenance and install the electric motor back, the installation
bolts for the electric motor could be tighten in wrong position which will make the drive belt
too tight and cause the electric motor hard to bring the system to run, the set the belt tension
correctly, the electric motor securing bolts should be one tighten at top position of the bolt slot,
the other one at middle position, if both bolts at top position, then, the electric motor might
smoke and lack of power to start your gas engine.

When the belt tension sets correctly, before install it to the gas engine, connect the electric
motor with battery and test run it for 20 second to evenly distribute the grease inside the gear
box, then, stop the power, and now, you should be able to turn the drive shaft by finger, if not,
the belt still too tight, loose it further.
Third Channel Switch Control

Sometime when you connect the battery to R-One device and turn on the switch on R-One, the
TS760-Marine starter will start to run right away, even thought you haven't ready to turn on the
switch on third channel of the transmitter.

This happening is because every time when you turn on your transmitter, the third channel
switch is always on "left foward" position which is the "on" position for your starter kit, that is
why, as soon as you connect the battery to R-One, the electric motor starts to run.

Solution: Before you connect the LIPO battery to R-one, turn on your transmitter first, and press
on the third channel switch once that will switch it to "right forward" which is "off" position for
the starter kit, then, connect the LIPO battery to R-One, this will solve the issue.
