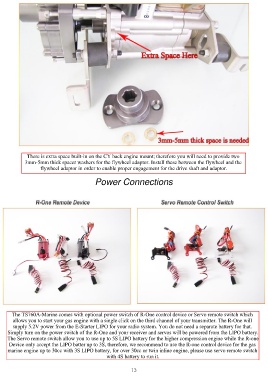

There is extra space built-in on the CY back engine mount; therefore you will need to provide two
3mm-5mm thick spacer washers for the flywheel adaptor. Install these between the flywheel and the
flywheel adaptor in order to enable proper engagement for the drive shaft and adaptor.

Power Connections

The TS760A-Marine comes with optional power switch of R-One control device or Servo remote switch which
allows you to start your gas engine with a single click on the third channel of your transmitter. The R-One will
supply 5.2V power from the E-Starter LIPO for your radio system. You do not need a separate battery for that.
Simply turn on the power switch of the R-One and your receiver and servos will be powered from the LIPO battery.
The Servo remote switch allow you to use up to 5S LIPO battery for the higher compression engine while the R-one
Device only accept the LIPO batter up to 3S, therefore, we recommend to use the R-one control device for the gas
marine engine up to 30cc with 3S LIPO battery, for over 30cc or twin inline engine, please use servo remote switch
with 4S battery to run it.
